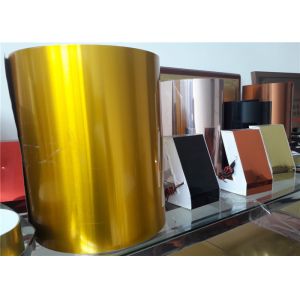

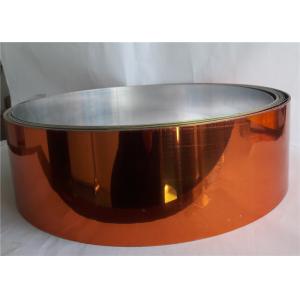

Thickness 0.14mm Polished Aluminum Coil With Mirror Surface,High
Temperature Resistance
Description
Surface treatment: gold Mirror
Thickness: 0.14mm-0.80mm
Coating thickness: 4-8 micron (μ)
Width: 40mm ~ 1300mm
Length: customized meter with roll way.
Roll Weight: appro.1000kgs/roll
Color: gold mirror, silver mirror, customized color
The series product used the physical rolling polished working
process, let the high purity aluminum plate with about 82%
reflectance, then use our brand UV painting covered the aluminum
plate surface. The most arresting feature of product is rich color
and high brightness etc.
The basic parameters are as follows: Basic aluminum thickness from
0.14mm to 0.80mm.
Painting thickness is from 4-8 micron,bending GB0-1T.
Neutral salt spray and high temperature and humidity resistance
test about 72H,temperature over 250 degree.
Application
For Iinterior mosaic panel.
More Uses
●. Typical application: Matal sheet for marine and transportation
vehicles, inner and outer siding, board of railway carriage,
storage device of oil and chemical industry, equipment panel and
medical machinery etc..
●. Building exterior curtain walls, Advertisement board display
platforms and signboards, Wallboards and ceilings for tunnels
●. Decoration and renovation additions for old building, decoration
of interior walls, ceilings, bathrooms, kitchens,and balconies
Alloy Chemical Composition
| CHEMICAL COMPOSITION |
| ALLOY | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | AI |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | / | / | 0.05 | / | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | / | / | 0.05 | / | 99.60 |
| 1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | / | / | 0.04 | / | 99.70 |
| 1100 | Si+Fe:0.95 | 0.05-.020 | 0.05 | / | / | 0.10 | / | / | 99.00 |
| 2024 | 0.50 | 0.50 | 3.80-4.90 | 0.30-0.90 | 1.20-1.80 | 0.10 | / | 0.25 | 0.15 | Remainder |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.00-1.50 | / | / | / | 0.10 | / | Remainder |
| 3105 | 0.60 | 0.70 | 0.30 | 0.30-0.80 | 0.20-0.80 | 0.20 | / | 0.40 | 0.10 | Remainder |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.50-1.10 | 0.10 | / | 0.25 | / | Remainder |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.20-2.80 | 0.15-0.35 | / | 0.10 | / | Remainder |
| 5083 | 0.40 | 0.40 | 0.10 | 0.40-1.00 | 4.00-4.90 | 0.05-0.25 | / | 0.25 | / | Remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.60-3.60 | 0.30 | / | 0.20 | / | Remainder |
| 6061 | 0.40-0.80 | 0.70 | 0.15-0.40 | 0.15 | 0.80-1.20 | 0.04-0.35 | / | 0.25 | / | Remainder |
| 6063 | 0.20-0.60 | 0.35 | 0.10 | 0.10 | 0.45-0.90 | 0.10 | / | 0.10 | / | Remainder |
| 6082 | 0.70-1.30 | 0.50 | 0.10 | 0.40-1.00 | 0.60-1.20 | 0.25 | / | 0.20 | / | Remainder |
| 7050 | 0.12 | 0.15 | 2.00-2.60 | 0.10 | 1.90-2.60 | 0.04 | / | 5.70-6.70 | 0.06 | Remainder |
| 7075 | 0.40 | 0.50 | 1.20-2.00 | 0.30 | 2.10-2.90 | 0.18-0.28 | / | 5.10-6.10 | 0.20 | Remainder |
Features
●. Excellent stripping degree & torsion strength
●. Easy processing & installation
●. Outstanding fireproof features
●. Excellent impact resistance
●. Perfect weather reisitance
●. Even coating & various colors
●. Easy to maintain
Why choose Yorto ?
1. Professional factory with professional production line over more
than 10 years.
2. Small quantity for trial is acceptable.
3. Strict QC management department with strict standards.
4. High quality products, competitive price and good after-sale
service provided.
Please feel free to contact us for more detail information,We are
always ready to serve you.
